Cilindro con set pistone Makita per EK8100

192,40 €

Cilindro con set pistone Makita per EK8100

192,40 €

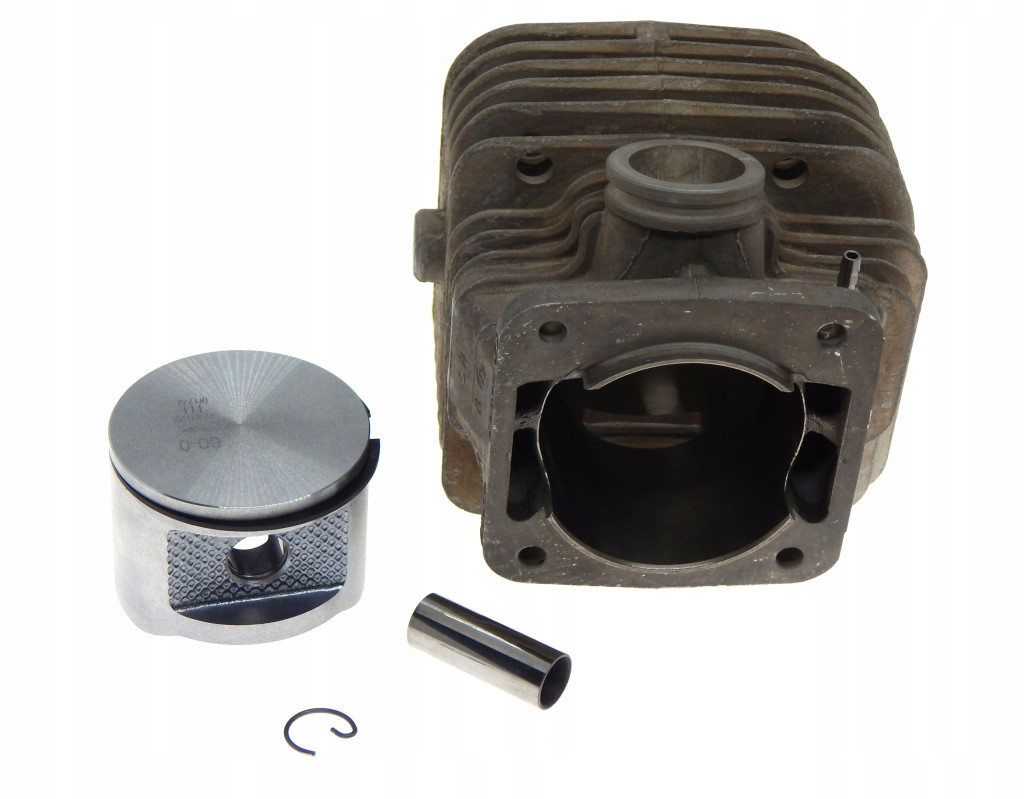

Cilindro Makita con pistone per sega troncatrice EK8100

Dettagli

/ Makita cylinder z tłokiem do przecinarki spalinowej EK8100

CYLINDER ASS'Y

Producent: Makita

Kod producenta: 135794-9 / 123441-4 / 328130110

Pozycja na schemacie: 123-1 - EK8100

Zastosowanie:

Przecinarka spalinowa

EK8100

Przecinarka spalinowa Dolmar

PC-8216

Spis części do EK8100

Pozycja na schemacie, Nr katalogowy, Opis, Ilość

001; 168507-3 KOREK ZBIORNIKA PALIWA / OLEJU do EA3201S; 1

002; 213080-9 O-RING 29,5 do EA3200S; 1

003; 163499-1 SUCTION HEAD; 1

005; 266687-0 ŚRUBA 5,5x45 do EK7651H; 1

006; 346870-6 WASHER 5.8X26X2; 1

007; 424695-9 VIBRATION DAMPER; 1

008; 319268-0 AXLE FOR VIBRATION DAMPER; 1

009-1; 140Y29-5 FUEL TANK CPL. BLUE; 1

011-1; 195762-4 ZAWÓR POWIETRZA do EA3200S; 1

012; 424723-0 FUEL LINE; 1

013; 252897-5 SCREW PLUG; 4

014; 268335-7 PIN 3; 1

015; 268233-5 PIN 3; 1

016; 455821-9 SAFETY LEVER; 1

017; 233626-5 SPRING; 1

018; 455820-1 THROTTLE LEVER; 1

019; 806J47-0 INDICATION LABEL; 1

020; 326497-8 THROTTLE LINKAGE; 1

021; 455806-5 RETAINER FOR DAMPER BLACK; 1

022; 424695-9 VIBRATION DAMPER; 1

023; 319268-0 AXLE FOR VIBRATION DAMPER; 1

024; 266943-8 H.L. SOCKET HEAD BOLT M5X40; 1

025; 143211-5 SIDE SUPPORT MAKITA; 1

026; 806J44-6 MAKITA LOGO LABEL; 1

027; 266475-5 H.L.TAPPING SCREW 5.5X20; 2

028; 319268-0 AXLE FOR VIBRATION DAMPER; 1

029; 424695-9 VIBRATION DAMPER; 1

030; 346870-6 WASHER 5.8X26X2; 1

031; 266687-0 ŚRUBA 5,5x45 do EK7651H; 1

032; 266687-0 ŚRUBA 5,5x45 do EK7651H; 1

033; 346871-4 WASHER; 1

034; 424695-9 VIBRATION DAMPER; 1

035; 852C52-3 EK8100 NAME PLATE; 1

036; 143097-7 WRAP AROUND HANDLE CPL; 1

037; 319270-3 FOOT, MACHINED; 1

038; 266687-0 ŚRUBA 5,5x45 do EK7651H; 2

039; 424693-3 PLUG; 1

041-1; 127087-8 FILTER COVER ASSEMBLY; 1

042; 266692-7 ŚRUBA M6x15 do EK7651H; 1

043; 123312-5 FILTER COVER COMPLETE; 1

044-1; 807L79-2 CAUTION LABEL; 1

045; 424700-2 PRE-FILTER; 1

053; 266941-2 H.L. SOCKET HEAD BOLT M5X50; 4

054; 123308-6 HOOD CPL. BLACK; 1

055; 424697-5 PACKING RING; 1

056; 806J50-1 CAUTION LABEL; 1

057; 424703-6 DEKO COVER; 1

058; 424701-0 AIR FILTER; 1

059; 424705-2 INNER FILTER; 1

060; 266960-8 H.L. SOCKET HEAD BOLT M5X20; 2

061; 266946-2 H.L. SOCKET HEAD BOLT M5X12; 1

062; 267821-5 SPRING WASHER 5; 1

063; 161338-9 MUFFLER CPL.; 1

067; 346876-4 MUFFLER GASKET; 1

068; 346868-3 COOLING PLATE; 1

069-1; 127098-3 INTAKE MANIFOLD ASSEMBLY; 1

072; 424708-6 INTAKE HOSE; 1

073; 233625-7 SPRING CLAMP; 1

074; 346867-5 GUIDE RING; 1

075; 455808-1 CHOKE SHAFT; 1

076; 326496-0 CHOKE LINKAGE; 1

077; 266944-6 H.L. SOCKET HEAD BOLT M4X55; 2

078-1; 412601-6 INSULATION TUBE 4-15; 2

079; 346874-8 GASKET; 1

080-1; 162532-6 CARBURETOR; 1

081; 324616-0 HOSE CLAMP; 1

082; 424698-3 TUBE 3-120; 1

083; 424696-7 RUBBER GROMMET; 1

085; 806K78-5 MAKITA LOGO LABEL; 1

086; 123357-3 STARTING DEVICE CPL. BLUE; 1

087; 267862-1 SPRING WASHER 5; 1

088; 452458-3 STARTER GRIP; 1

089; 266938-1 H.L. SOCKET HEAD BOLT MX20; 4

090; 123315-9 STARTER HOUSING BLUE; 1

091; 140587-1 REWIND SPRING COMPLETE; 1

092; 143098-5 CABLE DRUM COMPLETE; 1

093; 455805-7 AIR GUIDE PLATE; 1

094; 257997-6 RETAINING RING A14X1V; 1

095; 264107-8 HEXAGONAL NUT M8; 1

096; 267822-3 PODKŁADKA SPRĘŻYSTA do EA3201S; 1

097; 123306-0 FLYWHEEL D=120 CPL; 1

098-1; 327728-8 BEARING BOLT; 2

099; 346865-9 STARTER-RATCHET; 2

100; 233535-8 TORSION SPRING 13; 2

101; 632E41-4 CABLE WITH PLUG; 1

103; 346869-1 CONTACT SPRING; 1

104; 266942-0 H.L. SOCKET HEAD BOLT M5X20; 2

105; 451462-9 ISOLATING WASHER; 2

106-1; 161310-1 IGNITION COIL CDIM 120-15; 1

107; 424706-0 PLUG CAP; 1

108; 234358-7 TERMINAL SPRING; 1

109; 168517-0 SPARK PLUG; 1

111; 455819-6 HOOD; 1

112; 266940-4 H.L. SOCKET HEAD BOLT M5X15; 3

113; 266945-4 H.L. SOCKET HEAD BOLT M5X30; 5

114; 213814-0 RADIAL RING; 1

115; 264108-6 SQUARE NUT M5; 1

116; 424707-8 RUBBER SHEET; 1

117; 143226-2 CRANKCASE MS CPL.; 1

118; 258038-1 CLAMPING PIN; 2

119; 346877-2 CRANK CASE GASKET; 1

120; 211154-0 BALL BEARING 6202; 1

121-1; 266473-9 H.L. SOCKET HEAD BOLT M5X23; 4

122; 455804-9 DECOMPRESSION VALVE; 1

123-1; 135794-9 CYLINDER ASS'Y; 1

125; 234359-5 CIRCLIP 12; 1

126; 257841-7 PISTON PIN; 1

127-1; 198667-7 PISTON SET; 1

128; 257381-5 PISTON RING 52; 1

129; 234359-5 CIRCLIP 12; 1

130; 346873-0 GASKET; 1

131; 212133-1 PISTON PIN BEARING 12X16X13; 1

132; 254042-8 WOODRUFF-KEY 3X3,7; 1

133; 143109-6 CRANKSHAFT CPL.; 1

134; 211154-0 BALL BEARING 6202; 1

135; 143225-4 CRANKCASE CS CPL; 1

136; 213814-0 RADIAL RING; 1

137; 234366-8 SNAP RING A 16; 1

138; 346872-2 STOP RING; 1

139; 346866-7 GUIDE DISK; 1

140; 161318-5 CLUTCH DRUM CPL.; 1

141; 212134-9 NEEDLE ROLLER BEARING 15X21X16; 1

142; 267389-1 FLAT WASHER 12; 1

143; 123305-2 CLUTCH, CPL; 1

144-3; 232352-3 TENSION SPRING 6; 3

145; 424711-7 V-BELT; 1

146; 455832-4 CLUTCH COVER; 1

147; 266947-0 H.L. SOCKET HEAD BOLT M5X14; 3

150; 266976-3 HEX. BOLT M8X25; 1

151; 224443-4 FLANSZA 102 do EK7651H; 1

152; 326503-9 AXLE; 1

153; 224443-4 FLANSZA 102 do EK7651H; 1

154; 257375-0 SPACER, 8MM; 1

155; 318746-7 PIERŚCIEŃ DOCISKOWY do EK7651H; 1

156; 442169-8 DYSK ŚLIZGOWY do EK7651H; 1

157; 424426-6 PIERŚCIEŃ GUMOWY WEWNĘTRZNY do EK7651H; 1

158; 424427-4 PIERŚCIEŃ GUMOWY ZEWNĘTRZNY do EK7651H; 1

159; 442169-8 DYSK ŚLIZGOWY do EK7651H; 1

160; 346455-8 PŁYTKA POŚREDNIA do EK7651H; 1161-1; 807B76-8 CAUTION LABEL; 1

162-1; 143794-5 HOOD COMPLETE; 1163; 452938-9 UCHWYT OSŁONY TARCZY do EK7651H; 1

164-1; 265642-9 H.L.SOCKET HEAD BOLT M5X16; 2

165; 319289-2 CUTTING DEVICE; 1

167; 257998-4 RETAINING RING 40X1,75; 1

168; 211281-3 ŁOŻYSKO; 1

169; 257998-4 RETAINING RING 40X1,75; 1

170; 257375-0 SPACER, 8MM; 1

171; 211281-3 ŁOŻYSKO; 1

172; 213625-3 O-RING 9 do EK7651H; 1

173; 123307-8 STOP BOLT CPL.; 1

174-1; 266969-0 HEX. BOLT M8; 2

175; 234216-7 SPRĘŻYNA ŚCISKAJĄCA 8 do EK7651H; 3

176; 266689-6 ŚRUBA M6 do EK7651H; 3

177; 222185-4 BELT PULLEY; 1

178; 266976-3 HEX. BOLT M8X25; 1

180; 346457-4 PŁYTKA do EK7651H; 1

181; 264112-5 SQUARE NUT M6; 1

182; 234215-9 SPRĘŻYNA ŚCISKAJĄCA 6 do EK7651H; 1

183; 455831-6 BELT COVER; 1

184-1; 265644-5 TENSIONING SCREW M6; 1

185; 252145-2 NAKRĘTKA M8 do DCS230T; 2

186; 123369-6 PARTS FOR WATER ATTCHMENT KIT; 1

187; 264109-4 CAPPING NUT; 1

188; 266949-6 HOLLOW SCREW, BORED; 1

189; 266949-6 HOLLOW SCREW, BORED; 1

190; 264109-4 CAPPING NUT; 1

191; 266950-1 H.L.SOCKET HEAD BOLT M6X14; 1

192; 183F34-5 STARTER-RATCHET SET; 2

193; 319294-9 FOOT; 1

194; 266605-8 ŚRUBA IMBUSOWA M5x16; 4

195; 266974-7 H.L. TAPPING SCREW 5 12; 1

201; 422383-2 SEALING; 1

202; 422655-5 STARTER ROPE; 1

A01-1; 197200-2 TOOL KIT; 1

C10; 782025-3 WKRĘTAK TORX do EK7651H; 1

C20; 782028-7 UNIVERSAL WRENCH 13-19; 1

C30; 783012-5 ŚRUBOKRĘT do EA3200S; 1

C40; 831340-3 TOOL BAG; 1

A02; 123121-2 SZYBKOZŁĄCZKA do EK7651H; 1

B01; 135923-4 BELT COVER ASS'Y; 1

]]>
